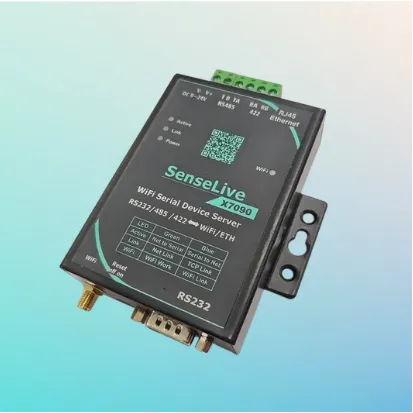

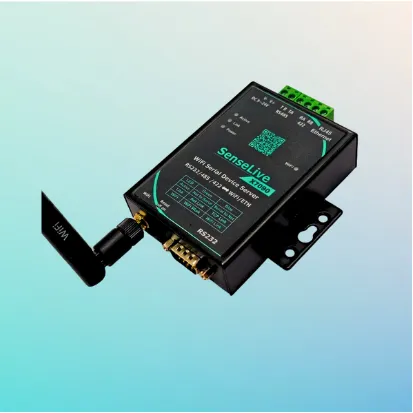

Senselive X7090

WiFi serial Device Server

Short Description

The X7090 is a high-performance WiFi serial device server, supporting simultaneous Ethernet and WiFi connections for flexible networking. Designed for industrial applications requiring high stability and real-time performance, it’s ideal for wireless remote monitoring such as PLC systems.

Key Features

• Supports Wi‑Fi 802.11 b/g/n standards for reliable wireless communication
• Wide input voltage range (9–24V) and industrial-grade operating temperature (–40℃ to 85℃)
• Robust RS485-to-Wi‑Fi conversion for legacy serial devices
• Flexible network modes: AP/STA, TCP server/client, and UDP support
• Advanced protocol conversion including Modbus TCP⇆RTU and MQTT/JSON for cloud connectivity
• Remote configuration, monitoring, and firmware upgrade capability

Product Overview

The SenseLive X7090 is a high-performance WiFi serial device server, supporting simultaneous Ethernet and WiFi connections for flexible networking. Designed for industrial applications requiring high stability and real-time performance, it’s ideal for wireless remote monitoring such as PLC systems.

• Maintenance-Free Operation

  Self-powered design eliminates the need for battery replacement, reducing maintenance costs and downtime.

• Ethernet & WiFi

  Support simultaneous access.

• Power Supply

  9–24V wide range; supports industrial terminal or adapter input.

• Real-Time Performance

  Sticky packet optimization with 1–100 ms frame interval.

• Network Support

  DHCP Client/Server, DNS, TCP/UDP (up to 100 TCP connections).
