Product Overview

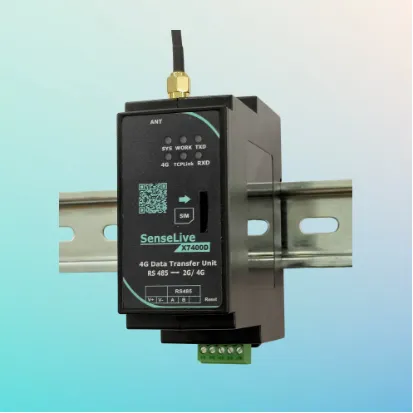

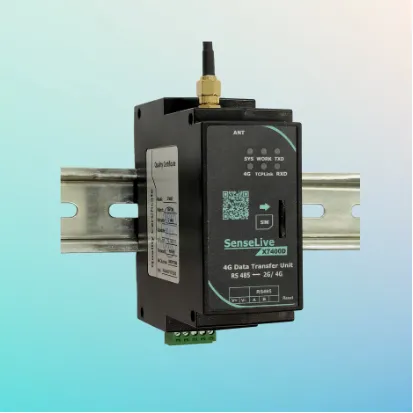

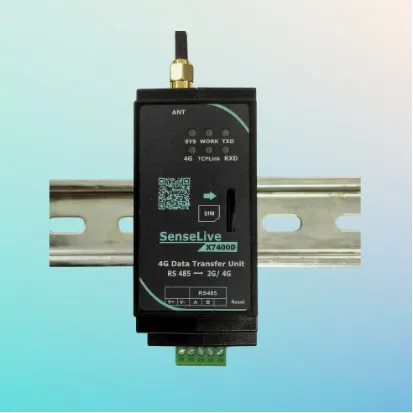

The SenseLive X7400D is a premium industrial-grade 4G CAT1 Data Transmission Unit (DTU) designed for mission-critical applications. It seamlessly bridges the gap between RS485 serial devices and modern cloud platforms, enabling real-time data transmission and remote management.
With its robust DIN-rail mountable design and wide operating temperature range, the X7400D is built to withstand harsh industrial environments. The device features advanced edge computing capabilities, allowing for local data processing, caching, and threshold-based alarms.
Integration with the SenseLive Configuration Tool provides comprehensive remote management, including configuration, firmware updates, and diagnostics. The X7400D supports multiple protocols including Modbus RTU, MQTT, and HTTP, making it compatible with a wide range of industrial systems and IoT platforms.
Complete Feature Set
Edge Computing
Includes local caching, scaling, threshold alarms for intelligent operation at the edge
Remote Management
Remote configuration & updates via SenseLive Configuration Tool
Flexible Networking
Supports P2P and M2M networking without custom servers
Industrial Grade
Wide voltage support (9–24V DC) and -40°C to +85°C operating range
Communication
Wireless Connectivity4G CAT1 (TD-LTE, FDD-LTE), GSM fallbackData Transmission Rate5 Mbps (uplink), 10 Mbps (downlink)Serial InterfaceRS485Protocols SupportedModbus RTU, MQTT, HTTP POST/GET, JSONSIM Card TypeStandard SIM (1.8V/3V)
Hardware
Operating Voltage9–24V DCOperating Temperature-40°C to +85°CStructureCompact, DIN-rail mount, flame-retardantSoftware SupportFully managed by SenseLive Configuration ToolAdditional FeaturesP2P, M2M, offline storage, edge computing
