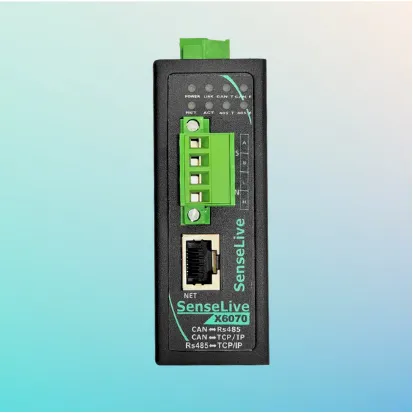

SenseLive X6070 (CAN to Ethernet/RS485)

SenseLive X6070

2 RS485 ports, Ethernet, Modbus RTU to Modbus TCP

Short Description

X6070 is an industrial RS485 serial server and IoT gateway with optocoupler isolation for interference protection. It features dual RS485 ports, Ethernet connectivity, 9–24V terminal power, and multiple installation options. Supports shared or dedicated IPs, 2 stop bits, 7-bit data, and baud rates up to 921.6 Kbps. Provides TCP/IP to RS485 conversion, virtual serial ports, Modbus RTU to TCP, MQTT, and DLT-645 to JSON conversion with scheduled uploads for reliable industrial data communication.

Key Features

  • RS485 / CAN Interface
  • 2× RS485 Ports with Independent Configuration
  • Baud Rate Support up to 921.6 Kbps
  • Modbus RTU ↔ TCP Conversion
  • MQTT & HTTP Cloud Support
  • 645-to-JSON Data Conversion with Scheduled Upload
  • Virtual Serial Port Support
  • 10/100M Ethernet with 2KV Surge Protection
  • Flexible Power Input: 9–24V DC
  • Compact Size: 88 × 62 × 33 mm
  • Industrial-Grade Optocoupler Isolation
  • Multi-Protocol Support: TCP/IP, UDP, HTTP, MQTT, CAN
  • Operating Range: -40°C to +85°C, up to 95% RH

Product Overview

X6070 is an industrial RS485/CAN serial server and IoT gateway designed for interference protection. It features 9–24V terminal power, grounding, two RS485 ports, Ethernet, and three installation options. It supports shared/dedicated IPs, 2 stop bits, 7-bit data, and baud rates up to 921.6 Kbps. The device converts TCP/IP to RS485, supports virtual serial ports, Modbus RTU to TCP, MQTT, and 645-to-JSON conversion with scheduled uploads.

  • RS485 / CAN Interface

    Supports RS485 and CAN communication for enhanced industrial connectivity.

  • Dual RS485 Ports

    Two independently configurable RS485 ports allow flexible device communication.

  • Flexible Power Input

    Wide 9–24V DC input makes it suitable for diverse industrial power systems.

  • Ethernet Connectivity

    10/100M Ethernet with 2KV surge protection ensures stable and safe network communication.

  • Multi-Protocol Support

    Supports Modbus RTU/TCP, MQTT, JSON, HTTP, TCP/IP, UDP, and CAN protocols.

  • JSON Conversion Engine

    Built-in 645-to-JSON conversion with scheduled uploads for IoT applications.

  • Compact & Rugged

    Small industrial design (88×62×33 mm) with DIN-rail and multi-mount options.

₹ 9,500.00 ₹ 9,500.00

  • Packaging
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
