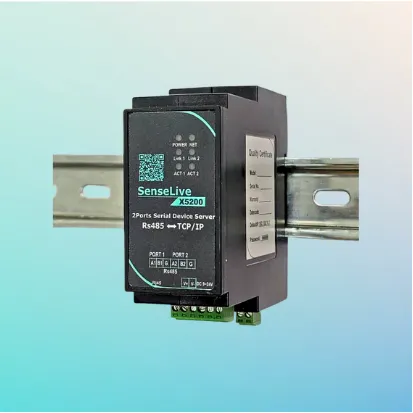

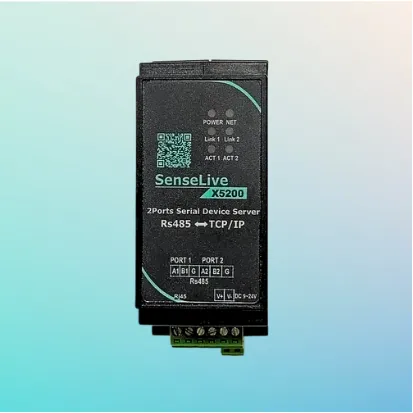

SenseLive X5200

RS485 to TCP/IP Modbus RTU to Modbus TCP

Short Description

X5200 is an industrial RS485 serial server and IoT gateway with optocoupler isolation for interference protection. It features dual RS485 ports, Ethernet connectivity, 9–24V terminal power, and multiple installation options. Supports shared or dedicated IPs, 2 stop bits, 7-bit data. Provides TCP/IP to RS485 conversion, virtual serial ports, Modbus RTU to TCP, MQTT, and DLT-645 to JSON conversion with scheduled uploads for reliable industrial data communication.

Key Features

• Dual RS485 Ports
• Modbus TCP ↔ RTU
• MQTT & JSON Gateway
• DIN-Rail or Multi-mount
• Compact & Rugged (88×62×33 mm)
• Wide Operating Range: -40°C to +85°C, 95% RH
• Flexible Power: 9–24V DC
• Multi-mode: TCP Server/Client, UDP, Multicast
• Easy Configuration: SenseLive Configuration Tool, Web, AT commands

Product Overview

X5200 is a compact industrial RS485 data collector and IoT gateway with dual RS485 ports and an Ethernet port. It supports Modbus TCP↔RTU, MQTT, JSON, and HTTP for cloud integration and remote data collection, offering high-temperature resistance, fire safety, and stable industrial performance.

• 4 Independent RS485 Interfaces

  Supports four RS485 interfaces with separate configurable baud rates for flexible connectivity.

• Compact & Rugged Enclosure

  Alloy flame-retardant plastic casing ensures durability and fire safety in industrial settings.

• Ethernet Connectivity

  RJ45 with auto cross-cable detection (MDI/MDIX) for easy network integration.

• Wide Voltage Input

  Operates on 9–24V DC with low power consumption for flexible deployment.

• Multi-Protocol Support

  Handles Modbus TCP/RTU, MQTT, JSON, HTTP, and RealCom protocols for seamless communication.

• Multi-Client Capability

  Supports TCP server with up to 30 connections and multiple client mode for scalable networking.

• Advanced Software Features

  Heartbeat packets, alarms, scaling, and data format conversion for enhanced management.

• Industrial EMC Protection

  High-temperature operation (-40°C to +85°C) with robust EMC and surge protection.

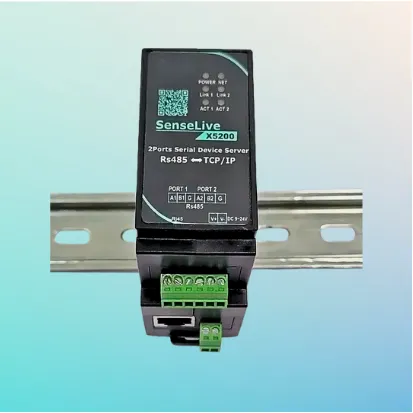

• DIN-Rail Mounting

  Quick 35 mm DIN-rail installation for easy deployment in control panels.
