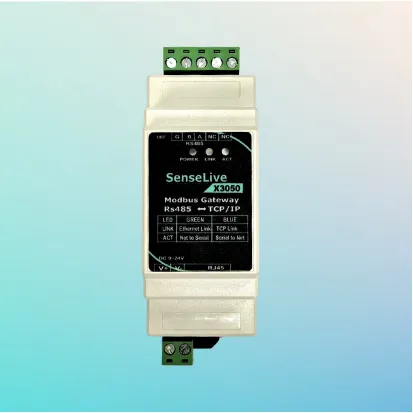

SenseLive X3050
Industrial RS485 to Ethernet Modbus Gateway
Short Description
The X3050 is an ultra-compact industrial serial device server that provides seamless bidirectional communication between RS485 serial devices and Ethernet networks. It is designed for simple, reliable Modbus protocol conversion and cloud data reporting via MQTT.
Key Features
- Single RS485 Port
- 10/100M Auto-adaptive Ethernet
- Modbus TCP ↔ RTU Support
- MQTT & HTTP Client Support
- Ultra-Compact Form Factor
- Operating Temp: -40°C to +85°C
- Wide Power Input: 9–24V DC

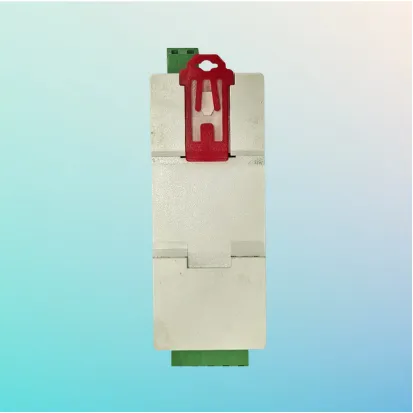

- 35mm DIN-Rail Mounting
Compact Industrial Integration
The X3050 is engineered for space-constrained industrial environments. Its slim profile allows for high-density mounting in electrical cabinets, providing a reliable bridge between legacy serial equipment (like PLCs, energy meters, and sensors) and modern Ethernet-based management systems.
Specifications :-
| Serial Interface | 1 x RS485 (A, B, GND) |
| Network Interface | RJ45 Ethernet, 10/100 Mbps, MDI/MDIX auto-sensing |
| Baud Rate | 600 bps to 230.4 Kbps |
| Protocols | IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP |
| Conversion | Modbus RTU to Modbus TCP, MQTT, JSON |
| Configuration | Web UI, Configuration Tool, AT Commands |
| Power Supply | 9–24V DC Terminal Block |
| Operating Temp | -40°C to +85°C |
| Protection | Power Reverse Polarity, EFT/Surge Protection |
| Mounting | Standard 35mm DIN-Rail |
