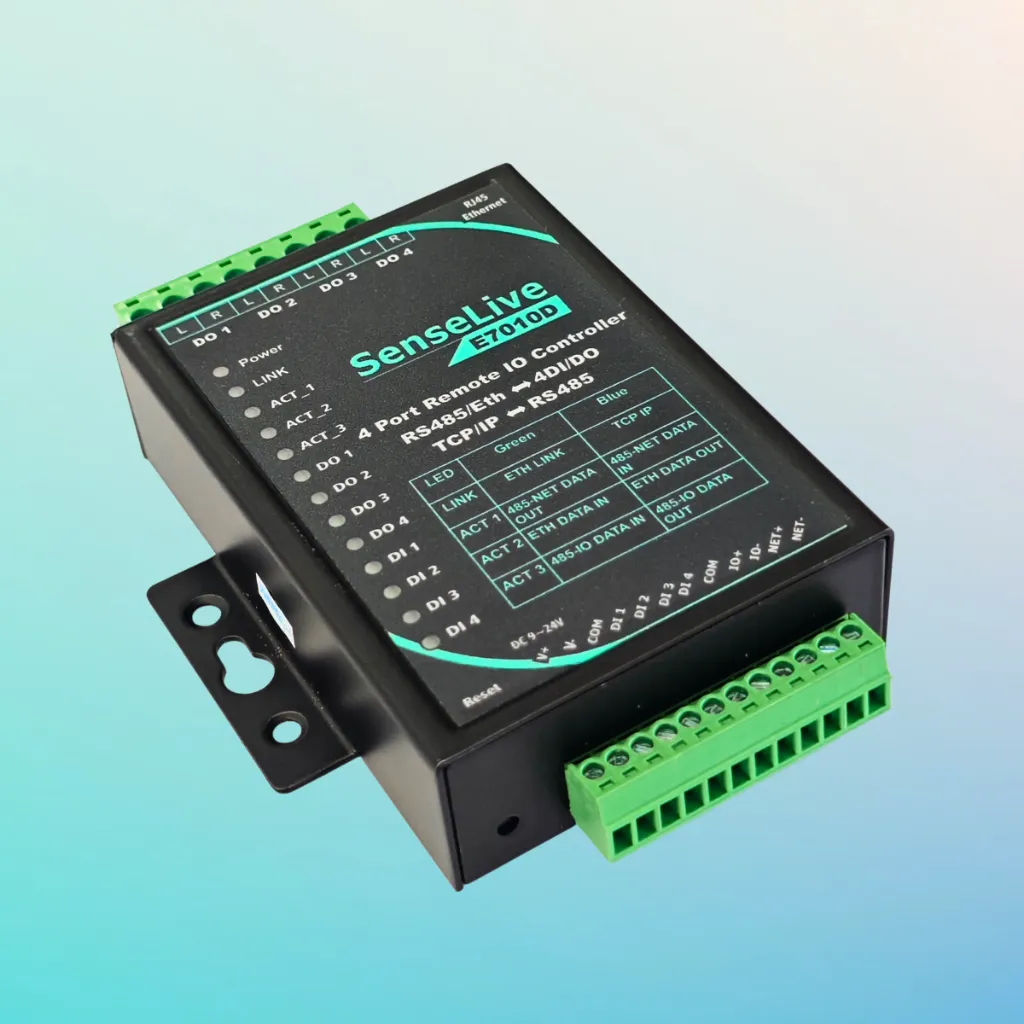

SenseLive E7010D
Ethernet-based Remote IO Controller
Short Description
The E7010D series is a compact, cost-effective industrial gateway designed for flexible DI/DO and analog input/output combinations. It provides stable 16-bit analog signal acquisition and output, supporting ranges such as 4–20 mA, 0–5 V, 0–10 V, and resistance inputs (factory-set).
Key Features
- 4-channel DI and 4-channel DO with 16-bit ADC/DAC precision
- Serial communication (1200–115200 bps) with multiple parity modes
- Ethernet model supports RS485 slave devices via 485-ETH
- Modbus MB protocol with RTU-to-JSON conversion
- Edge computing: alarms, scaling, change upload & offline alerts
- Remote network configuration & parameter management
The E7010D series is a compact and cost-effective industrial gateway that supports flexible DI/DO and analog input combinations. It offers reliable 16-bit signal acquisition for 4–20 mA, 0–5 V, 0–10 V, and resistance inputs (factory-set), delivering stable performance in industrial environments.
The device supports RS485 or Ethernet communication, enabling dependable field-level monitoring and control. Various DI/DO combinations (0–4 DI/DO) are available, and custom configurations can be requested as needed.
E7010D supports Modbus communication, remote monitoring, and parameter configuration, making it suitable for SCADA, industrial automation, and real-time data acquisition applications.
Flexible DI / DO Configuration
Supports up to 4-channel DI input and 4-channel DO output with stable 16-bit precision.
Advanced Communication Support
RS485 communication from 1200–115200 bps with multiple parity modes, plus Ethernet option for 485–ETH bridging.
Modbus & Protocol Conversion
Supports Modbus RTU, MB protocol, and RTU-to-JSON conversion for seamless integration.
Built-in Edge Computing
Includes alarms, data scaling, change-based upload, and offline alert capabilities.
Easy Remote Management
Supports network configuration, parameter updates, and remote device management.
